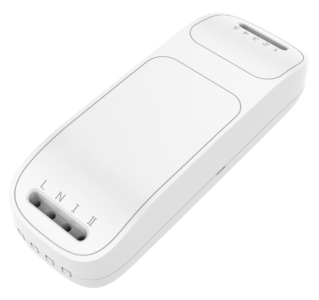

Dimming Control Module

P-A-1D1S2AT/P-A-1D1S3AT

The dimming control module has on/off control and 0-10V output function. It is used in conjunction with the dimming power supply, and the dimming speed is configurable. It supports the slow light control, slow light off control or soft switching of the brightness of the dimming lamp.

Category: Controller

Features Specifications Wiring Diagram

Support remote control
Power line communication/support power line online upgrade
Uses 0V-10V dimming to achieve 100-level brightness adjustment
Status synchronization

Operating Voltage: AC 100V~240V
Operating Frequency: 50/60Hz
Power Consumption: < 0.5W
Rated current: 2A/3A
Communication: Power Line Communication (PLC)
Output 1：AC 100V ~ 240 V
Output 2：0-10V/PWM GND
Load type：PWM Dimming LED Power Supply
Operating Temperature: -10°C ~55°C
Operating Humidity: 10%RH ~ 85%RH
Dimension(L*W*H): 136.5*50.5*32.5mm
