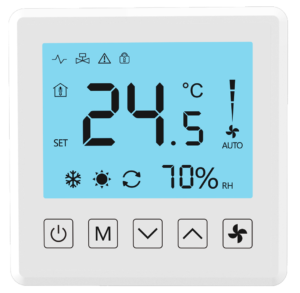

AC Control Module

P-T-5F5A-ET

Through the comparison result of the ambient temperature and the set temperature, the working state of the fan coil and electric valve, electric ball valve or air valve at the end of the air conditioning system is controlled to achieve the purpose of adjusting temperature and saving energy. At the same time support sensor self-test, PLC status indication and other functions.

  • Temperature setting
  • Mode selection
  • Wind speed selection
  • Low temperature protection
  • Status change reporting
  • Screen lock
  • Switch setting
  • Device search
  • Operating Voltage: AC 100V~240V
  • Operating Frequency: 50/60Hz
  • Power Consumption: < 0.5W
  • Power Source: AC Neutral and Live line
  • Communication Technology:Broadband PLC
  • Mounting holes distance: 60 mm (standard)
  • Installation type: 86mmx86mm Mounting Box
  • Operating Temperature: -10°C ~60°C
  • Operating Humidity: 10%RH ~ 85%RH
  • Dimension: 136.2mm(L)*49.6mm(W)*33mm(H)
